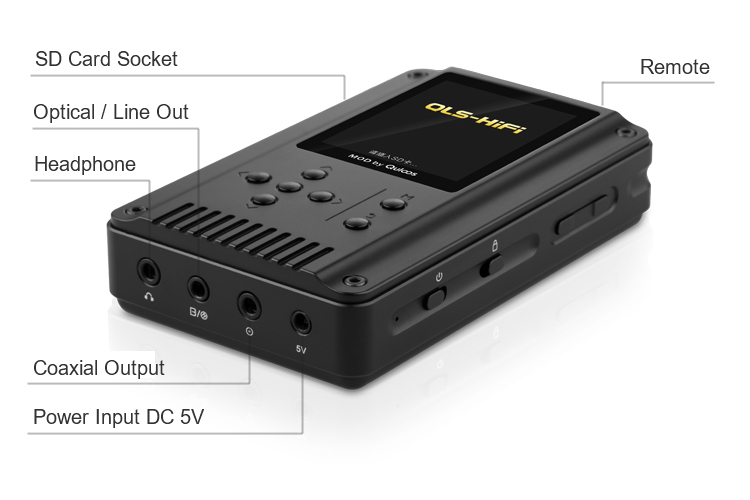

QA360 MOD Portable HiFi Lossless Music Player

Description:

• The QA360 MOD is a mass production version of the QA360LE, It's circuit and material and QA360LE is exactly the same, only the production process will be different. It is based on the QA360 with improvementon the sound.

• The QA360 MOD's sound of approaching a limited edition (limited edition can at least reach 97% of the sound quality is generally not AB will be obvious).

• Compared to the QA360, it s quite obvious that that the QA360 MOD is able to produce a noticeably cleaner and more textured sub bass. QA360 MOD is have a more thicker warm mids, and more precise's Imaging, and a more background's dark, has a great sense of impact and musicality, and more retrieval of details .

  About The QA360: You can See here
  About The QA360LE: You can See here

• Our target: Perfectly and accurately recovery for the music recordings, and deep dark background .

The Single Threaded Software Framework

QA360 MOD implemented QLS-HiFi s unique proprietary technology C the single threaded software framework. This technology ensured ultra-low jitters and high accuracy in playback of digital music by occupying the whole CPU with the single music reading and decoding program during the music playback.We keep it simple as always for supporting the simplest SD media cards only, however on the other hand we make every attempt to improve the back end qualities so providing the best value to againstthe priceto the true audiophiles. QA360 MOD is the continuing persistence in pursuit of our belief on HiFi equipment development.

24Bit / 192KHz wav and DSD Support

QA360 MOD supports Studio Master wav files in 24Bit / 192KHz and DSD64 / 1Bit / Stereo. DSD files can be streamed out of the digital output in DoP format, and hardware converted to analog singles directly through the internal DAC as well.

Specifications:

• Three Low jitter TCXO for PCM & DSD.
• Use PGA2311 for Advanced digital volume control.
• SDHC / SDXC Supports up to 256GB with FAT32.
• Firmware upgradeable
• MENU: English Simplified Chinese Chinese Traditional.
• High power Class A headphone amplifier.
• PGA2311 150-Steps high-performance Digital-Controlled Analog Volume Control
• 4-layers PCB for all circuit boards.
• Support: 16Bit / 24Bit, 44.1-192Khz, DSD 1Bit 64FS.
• Audio format supported:

  WAV	16 / 24Bit, 44.1~192 kHz.
  AIFF	16 / 24Bit, 44.1~192 kHz.
  FLAC	16 / 24Bit, 44.1 kHz~48 kHz, compression level 0~8.
  APE	16Bit, 44.1 kHz, compression level fast and normal.
  ALAC	16Bit, 44.1 kHz
  MP3	16Bit, 44.1 / 48 kHz, 96k bps~320k bps, CBR / VBR / ABR encoding.
  CUE	ANSI  /  UNICODE  /  UTF-8 Encoding.
  DSD	DSD64 1Bit, Stereo---DIFF DSF SACD ISO.

• Digital output: PCM  /  Dolby Digital output /  DTS Digital output  /  DSD (DoP V1.0).
• Digital output: Coaxial*1(3.5mm), Optical*1(Round Port).
• Analog output: 3.5mm Line Out.
  - Analog Line out: 2V (RMS), frequency response 0Hz-20KHz, SNR 116dB, Distortion 0.0006%
  - Headphone out: 490mW / 16 ; 245mW / 32 ;   55mW / 300 ; Frequency response: 0Hz-20Khz;
• Output impedance: 0.075 ohms
• DAC Chip: CS4398.
• LVP: AD8620.
• Battery Type: 3.7V 3000-3120mAH Li-Po battery.
• Battery life: 10 to 11 hours for PCM, Or 7-8 hours for DSD.
• Weight: 0.26kg
• Dimensions: 117 x 72 x 27mm (WxDxH)

The following items are included with your Order:

1. QA360 MOD Player x 1
2. SDHC SD USB 2.0 Memory Card Reader x1
3. Wall Mount DC Power Supply & Charger x1 (Input: AC 110V-240V, Output: DC 5V 2A )
4. USB to 3.5*1.35 DC Cable for USB Charging x 1
5. User Guide x 1

Price: USD $650.000(This product has been discontinued and is out of stock)
